Product Introduction

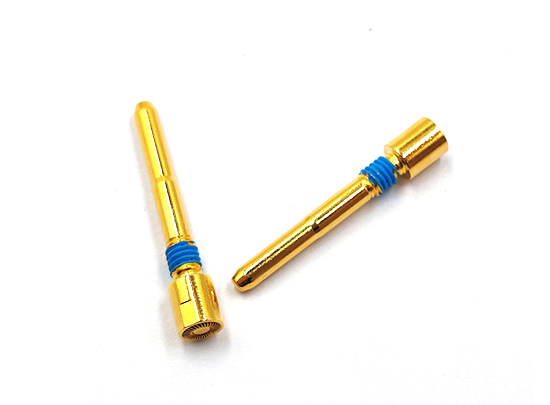

The High Load Spring Contact Probe, part of the High Current Probe Series, is designed for electrical systems where mechanical reliability and contact consistency are as critical as current-carrying capability.

In many power-related connection scenarios, electrical failure is not caused by insufficient current rating alone, but by micro-misalignment, uneven contact force, or gradual mechanical fatigue. This product series focuses on addressing those real-world challenges by combining a reinforced spring structure, controlled contact pressure, and precision-guided movement, ensuring stable electrical behavior over long-term operation.

Rather than relying solely on larger conductors, this probe emphasizes structural balance between force, travel, and contact area, making it a dependable solution for applications requiring repeated engagement without degradation in performance.

Product Features

Controlled Contact Force Design

Precisely calculated spring force ensures stable pressure at the contact point

Prevents under-compression and over-stress during repeated operation

Maintains consistent engagement even with tolerance variations

Reinforced Internal Structure

Strengthened internal components resist deformation over time

Improved axial alignment reduces lateral wear

Stable mechanical response across full stroke range

Stable Electrical Interface Geometry

Contact head geometry designed for uniform force distribution

Minimizes micro-arcing and uneven current concentration

Supports long-term resistance stability

High Cycle Durability

Engineered for frequent compression without loss of elasticity

Materials selected to reduce fatigue and surface wear

Maintains mechanical and electrical integrity after extensive cycling

Modular Compatibility

Designed to integrate into compact or modular electrical assemblies

Supports single-point or array-based configurations

Adaptable to various mounting and interface requirements

Product Advantages

Long-Term Consistency Over Peak Performance

Instead of focusing only on maximum current values, this probe prioritizes repeatable and predictable performance, which is often more critical in real operating environments.

Reduced Mechanical Failure Risk

Balanced force distribution and reinforced structure significantly lower the risk of bending, sticking, or uneven wear, even under frequent operation.

Improved System Stability

Consistent contact behavior helps stabilize overall system performance, reducing fluctuations caused by mechanical inconsistency rather than electrical limitations.

Lower Lifecycle Cost

Extended operational life and reduced replacement frequency help minimize downtime and long-term maintenance costs for integrated systems.

Product Applications

This High Load Spring Contact Probe is well suited for scenarios where mechanical stability and electrical continuity must be maintained simultaneously, such as:

Repeated connection interfaces in automated electrical assemblies

Power interface points requiring precise alignment

Electrical contact modules with tight mechanical tolerances

High-load contact points in modular power architectures

Systems where vibration or minor displacement may occur

Its design supports environments where reliability over time is more important than short-term peak performance.

Frequently Asked Questions (FAQ)

Q1: How is this probe different from standard high current pogo pins?
This probe emphasizes structural stability and controlled contact force, reducing mechanical wear and resistance fluctuation during repeated operation.

Q2: Why is contact force control important for high current connections?
Improper contact force can cause unstable resistance, localized heating, or accelerated wear. Controlled force ensures reliable electrical behavior and longer service life.

Q3: Can this probe handle slight misalignment during engagement?
Yes. The internal structure is designed to tolerate minor misalignment while maintaining stable contact and minimizing side-load stress.

Q4: Is the probe suitable for dense contact layouts?
Its compact and modular design allows integration into high-density arrangements without compromising mechanical stability.

Q5: What factors should be considered when selecting this probe?
Key considerations include required current range, compression stroke, cycle frequency, mechanical tolerance, and environmental conditions.
