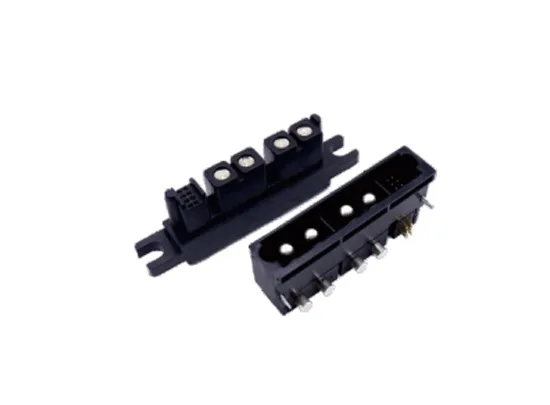

Product Introduction

The High-Current Self-Locking Quick-Connect Power Connector is engineered for power transmission systems where fast installation, secure retention, and stable current delivery are equally critical. Unlike traditional screw-type or loose-fit power connectors, this design integrates a quick-connect interface with a positive self-locking mechanism, allowing installers to complete reliable connections in seconds while maintaining consistent electrical contact under load.

This connector architecture is optimized for modern power distribution environments where downtime, mis-connection, or contact instability can lead to performance loss or safety risks. By combining high current capacity, controlled contact resistance, and mechanical anti-loosening structure, the connector provides a balanced solution for compact systems that still demand dependable power flow.

Designed with manufacturability and field usability in mind, the connector supports repeatable mating cycles and stable contact force, making it suitable for both mass production assembly lines and on-site installations where speed and accuracy matter.

Product Features

High-Current Contact Design

The internal conductive structure is optimized to support elevated current loads while minimizing temperature rise. Carefully controlled contact geometry ensures even current distribution across the mating surfaces, reducing localized heating and extending service life.

Quick-Connect Interface

The connector enables fast mating without complex tools or extended alignment steps. This reduces assembly time, lowers labor costs, and minimizes installation errors in high-volume or time-sensitive environments.

Integrated Self-Locking Mechanism

A built-in locking structure provides tactile and audible feedback upon full engagement, helping installers confirm a secure connection instantly. Once locked, the connector resists vibration-induced loosening and accidental disengagement.

Stable Contact Pressure

The contact system maintains consistent pressure over repeated mating cycles, ensuring reliable electrical performance even after long-term use. This stability helps prevent intermittent connections caused by relaxation or wear.

Compact Mechanical Profile

Despite its high-current capability, the connector maintains a space-efficient form factor. This allows designers to integrate it into dense layouts without compromising electrical or mechanical performance.

Product Advantages

Faster Assembly, Lower Risk

Compared to traditional threaded or bolt-down power connectors, the quick-connect structure significantly reduces installation time while lowering the chance of under- or over-tightening.

Enhanced Connection Security

The self-locking design ensures the connector remains fully seated during operation, reducing the risk of power interruption caused by movement, vibration, or handling.

Consistent Electrical Performance

Optimized contact materials and geometry help maintain low and stable contact resistance, supporting efficient power transfer and reducing energy loss.

Improved Serviceability

Quick disconnection without specialized tools allows for easier inspection, replacement, or system upgrades, improving overall maintenance efficiency.

Adaptable to Modern Power Systems

The connector supports evolving power architectures that demand higher current density without increasing connector size or complexity.

Product Applications

This high-current self-locking quick-connect power connector is commonly selected in systems where secure power delivery and rapid installation are essential. It is widely integrated into:

• Modular power distribution assemblies

• Industrial automation power interfaces

• Energy storage system interconnections

• Electric equipment with frequent connection cycles

• Compact power modules requiring vibration-resistant interfaces

Its balanced mechanical and electrical characteristics make it suitable for environments where reliability and assembly efficiency directly impact system performance.

FAQ

Q1: How does the self-locking mechanism improve safety?
The self-locking structure prevents partial engagement and unintended disconnection, reducing the risk of arcing or intermittent power loss during operation.

Q2: Is the connector suitable for repeated mating cycles?
Yes. The contact system is designed to maintain stable pressure and low resistance across multiple connection and disconnection cycles.

Q3: Does quick-connect mean reduced electrical reliability?
No. The quick-connect interface is engineered to provide consistent contact force and controlled resistance, ensuring reliable power transmission comparable to traditional fixed connectors.

Q4: Can this connector help reduce assembly time?
Absolutely. The tool-free quick-connect design significantly shortens installation time, especially in high-volume production or field installation scenarios.

Q5: How does this design handle vibration?
The integrated locking structure and stable contact pressure help maintain secure engagement even in environments with continuous movement or vibration.
