Product Introduction

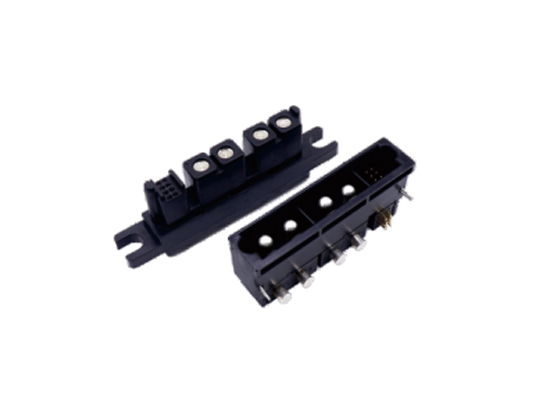

The Hybrid Power and Signal Board Interface Connector is designed to integrate power transmission and control signal routing within a single compact interface. Instead of separating power connectors and signal connectors across multiple connection points, this solution consolidates both functions into one coordinated connector structure, simplifying system architecture and assembly processes.

This connector structure supports multi-contact layouts with controlled spacing, allowing power lines and low-level signals to coexist without mutual interference. By reducing cable count and connector quantity, it helps improve system reliability while minimizing internal wiring complexity.

At YFS Technology (SZ) Co., Ltd, this connector is developed as part of a broader connector solution strategy, focusing on how power and signal interfaces interact at the board and system level rather than as isolated components.

Product Features

Integrated Power and Signal Layout

The connector combines dedicated power contacts with isolated signal terminals in a single housing. This integrated design reduces interface redundancy and improves overall connection efficiency.

Controlled Contact Segmentation

Power and signal contacts are arranged in physically separated zones, helping maintain stable electrical performance while minimizing signal disturbance.

Blind-Mate Compatible Structure

The mechanical guidance design supports blind insertion during assembly, enabling reliable mating without visual alignment and reducing installation time.

Multi-Position Contact Configuration

The connector supports multiple contact positions, allowing designers to allocate circuits flexibly according to system requirements.

Secure Mechanical Retention

The housing structure provides stable retention after mating, maintaining consistent contact engagement under vibration or repeated operation.

Product Advantages

Reduced System Complexity

By combining power and signal transmission into a single connector interface, system wiring becomes more organized and easier to manage.

Improved Assembly Efficiency

Blind-mate compatibility and guided insertion reduce assembly errors and shorten production time in high-volume manufacturing environments.

Optimized Space Utilization

Integrating multiple connection functions into one connector helps free up valuable board and enclosure space.

Enhanced Connection Stability

Dedicated contact zones and stable mechanical retention contribute to long-term electrical consistency.

Flexible Design Integration

The connector can be adapted to different system layouts without requiring major structural changes.

Product Applications

This hybrid power and signal board interface connector is commonly used in systems where compact integration and simplified connectivity are essential, such as:

• Industrial control assemblies

• Embedded computing platforms

• Automation equipment modules

• Power distribution subassemblies

• Electronic systems requiring synchronized power and control interfaces

Its balanced design makes it suitable for applications that demand both electrical performance and mechanical reliability.

FAQ

Q1: Why integrate power and signal in one connector?
Integration reduces connector count, simplifies wiring, and improves overall system reliability.

Q2: Can power and signal contacts interfere with each other?
No. The connector layout isolates contact zones to help maintain stable electrical behavior.

Q3: Is blind-mate installation reliable?
Yes. The guided mechanical structure ensures correct alignment during mating.

Q4: Does this connector support multiple configurations?
Yes. Contact positions can be allocated based on system-level design needs.

Q5: Is this connector suitable for repeated connection cycles?
The housing and contact design are engineered for stable performance over repeated use.
