Product Description

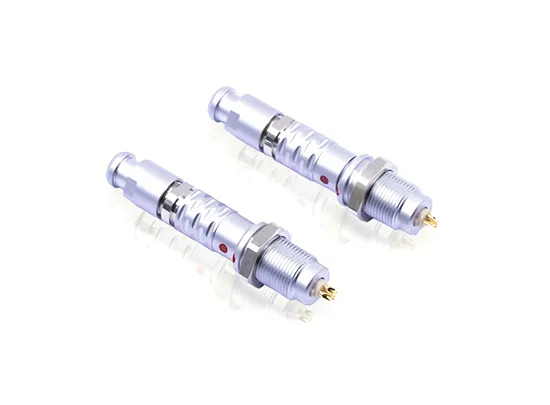

The Push-Pull Self-Locking Connector System developed by YFS Technology (SZ) Co., Ltd. is designed to meet the growing demand for secure, intuitive, and space-efficient interconnection solutions in modern electronic and electromechanical equipment.

Unlike conventional connectors that rely on friction or threaded locking, this connector system integrates a mechanical self-retention structure that engages automatically during insertion. Once mated, the connector remains firmly locked until a defined pull action is applied, effectively preventing unintended separation caused by vibration, cable movement, or operator error.

This product line is engineered to support high mating reliability, consistent electrical performance, and long-term operational stability, making it suitable for professional equipment where connection failure is not acceptable.

Structural and Functional Characteristics

Controlled Locking Engagement

The internal locking mechanism is activated only after full insertion, ensuring correct mating and reducing the risk of partial or unstable connections.

One-Step Mating and Release

Connection and disconnection are performed through simple axial motion, minimizing handling complexity and improving usability in confined or visually limited installation environments.

Compact Interface Design

Optimized connector geometry allows high pin density within a compact form factor, supporting modern equipment designs with limited internal space.

Consistent Contact Pressure

Precision-engineered contacts maintain stable pressure throughout the service life, ensuring reliable signal or power transmission across repeated mating cycles.

Modular Design Concept

Connector configurations can be adapted to different system architectures, allowing flexible integration into diverse equipment platforms.

Performance Benefits

Reduced Risk of Connection Failure

The self-locking mechanism significantly lowers the possibility of accidental unplugging, improving system uptime and operational safety.

Faster Installation and Servicing

Tool-free operation shortens assembly time and simplifies field maintenance, especially in applications requiring frequent connection changes.

Improved User Experience

Clear tactile feedback during insertion confirms proper locking, reducing installation errors and training requirements.

Compatibility with Customized Cable Assemblies

YFS Technology (SZ) Co., Ltd. offers integrated connector and cable assembly solutions, enabling optimized electrical performance and cleaner system layouts.

Designed for Long-Term Use

Materials and structural components are selected to support repeated use without degradation in mechanical or electrical performance.

Application Scenarios

Push-pull self-locking connectors are particularly suited for systems that demand secure connectivity combined with fast operation, including but not limited to:

Medical and Healthcare Devices
Diagnostic equipment, patient monitoring systems, portable medical electronics.

Industrial Control and Automation
Control units, motion systems, industrial sensors, and machine interfaces.

Robotics and Intelligent Equipment
Signal and power connections for robotic arms, controllers, and modular subsystems.

Test, Measurement, and Instrumentation
Laboratory instruments, inspection equipment, and data acquisition platforms.

Mobile and Compact Electronic Systems
UAV electronics, portable devices, and modular embedded systems.

Engineering and Customization Options

YFS Technology (SZ) Co., Ltd. supports application-driven customization, allowing push-pull connector systems to be tailored according to:

Pin count and contact layout

Electrical ratings and signal requirements

Connector size and interface dimensions

Cable length, shielding, and overmolding

Specific mechanical or structural constraints

This approach enables seamless integration into customer systems while maintaining reliability and performance consistency.

Frequently Asked Questions (FAQ)

Q1: What makes push-pull self-locking connectors suitable for professional equipment?
Their automatic locking structure ensures secure connections while allowing fast operation, reducing both installation time and connection-related risks.

Q2: Are these connectors suitable for compact device designs?
Yes. The compact interface design supports high-density connections within limited space, making them ideal for modern compact equipment.

Q3: Can these connectors support both signal and power transmission?
They can be configured for signal, power, or mixed transmission depending on application requirements.

Q4: How does the connector improve maintenance efficiency?
The push-pull operation allows quick replacement or reconfiguration without tools, simplifying maintenance procedures.

Q5: Does YFS Technology (SZ) Co., Ltd. provide complete connection solutions?
Yes. In addition to connectors, customized cable assemblies and integrated connection solutions are available.
