Product Parameters

Specifications

current rating:3-5A

contact resistance:<50mΩ

spring force:2.0N

max.travel:1.3mm

bandwidth:-0.1db@6GHZ

test in good situation by pressing1/2-2/3 teavel.

Materials and plating

spring:music wire,gold plated

dielectric insulator:teflon

shielding tube:brass gold plated

signal plunger:be cu gold plated

the base:Copper alloy

Product Introduction

In modern RF system design, engineers increasingly search for connectors that offer precision signal control within limited space. Keywords such as compact RF connector, stable RF interface, and miniature RF series reflect a clear market demand: smaller connectors that do not compromise RF performance.

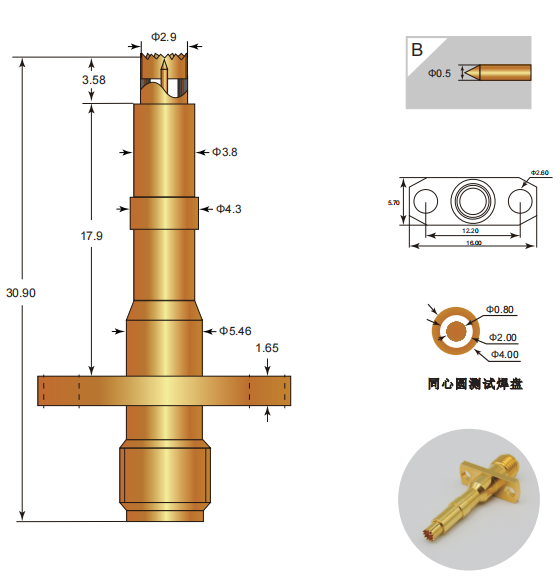

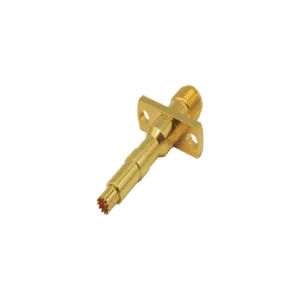

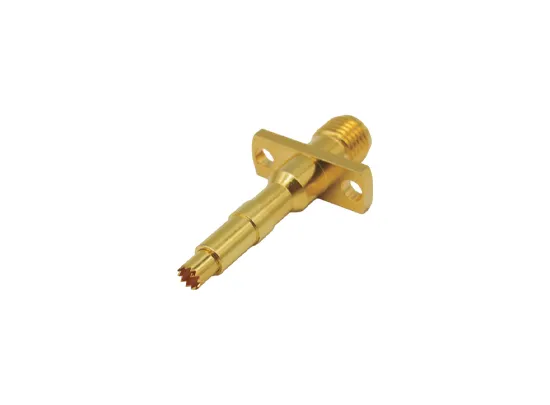

The D050 RF series connector is a dedicated RF connector series developed by YFS Technology (SZ) Co., Ltd. to address this demand. Unlike general-purpose RF connectors, the D050 series is engineered around dimensional control, mating accuracy, and electrical consistency, making it suitable for RF systems where space, signal integrity, and repeatability are all critical factors.
