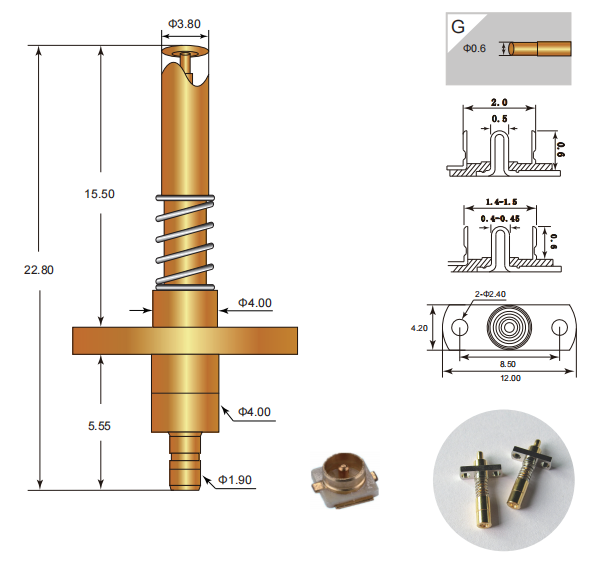

Product Parameters

Specifications

current rating:3-5A

Central Contact Elasticity:2.2N/5N

max.travel:1.1mm

bandwidth:-0.1db@6GHZ

insertion loss:0.60dB Max.

vswr:1.50Max.(DC to 6GHz)

contact resistance:<50mΩ

Materials and plating

spring:music wire,gold plated

dielectric insulator:teflon

shielding tube:brass gold plated

signal plunger:be cu gold plated

the base:Copper alloy

Product Introduction

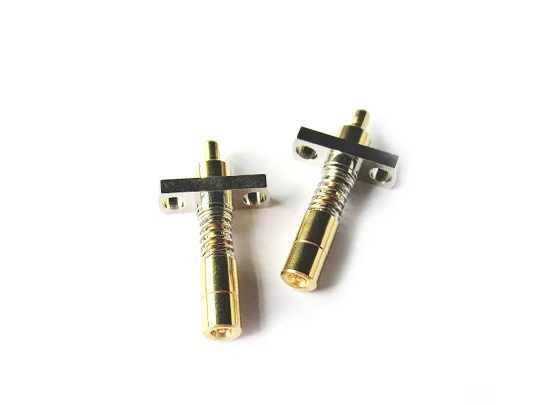

As RF systems become more compact and performance-driven, engineers are increasingly searching for RF connector series that offer predictable signal behavior without overcomplicated structures. The DuraLink D060 RF Interconnect Series is developed to address this demand by delivering stable RF transmission within a streamlined connector architecture.

Designed by YFS Technology (SZ) Co., Ltd., the D060 RF series focuses on signal integrity, mechanical consistency, and installation adaptability. Rather than positioning itself as a universal RF connector, this series is optimized for systems that require controlled RF performance within limited design space.

The D060 RF series is not an extension of legacy RF interfaces. It is a purpose-built RF interconnect solution created for modern electronic systems where electrical stability and long-term reliability are equally critical.

Series Design Concept

The DuraLink D060 RF Interconnect Series is built around a refined coaxial structure that prioritizes consistency across production batches. Every design decision—from conductor alignment to dielectric layout—is intended to reduce RF signal variation under real operating conditions.

This RF series emphasizes structural balance, ensuring that mechanical engagement supports, rather than interferes with, electrical performance. As a result, system designers can integrate the D060 RF series with confidence during early-stage development and long-term deployment.

Product Features

Optimized RF Signal Path

The internal structure of the D060 RF series is designed to maintain a stable transmission path, helping reduce signal loss and reflection during high-frequency operation.

Compact and Efficient Geometry

The connector geometry is optimized for space-conscious layouts, allowing RF systems to remain compact without sacrificing electrical reliability.

Reliable Contact Stability

Consistent contact pressure and precise alignment contribute to dependable RF performance across repeated mating cycles.

Manufacturing Consistency

The series design supports stable production quality, ensuring that electrical characteristics remain consistent across different manufacturing lots.

Adaptable Integration

The D060 RF series can be integrated into a wide range of RF system designs without requiring complex mechanical adjustments.

Product Advantages

Predictable RF Performance

Engineers benefit from stable electrical characteristics that simplify RF simulation, validation, and system tuning.

Reduced Design Complexity

By offering a refined RF structure, the D060 series minimizes the need for additional signal compensation or complex PCB routing.

Improved Long-Term Reliability

Mechanical and electrical stability help maintain performance consistency throughout the product lifecycle.

Suitable for Scalable Projects

The series-based design allows designers to standardize RF interfaces across multiple devices or system generations.

Backed by Professional RF Development

Developed by YFS Technology (SZ) Co., Ltd., the D060 RF series reflects dedicated expertise in RF interconnection design and manufacturing.

Product Applications

Wireless Communication Modules

Used in RF-enabled communication systems where signal stability and space efficiency are required.

RF Measurement and Test Equipment

Suitable for RF testing platforms that demand consistent performance and repeatable signal behavior.

Embedded RF Electronics

Applied in compact electronic devices that integrate RF transmission within limited internal space.

Industrial RF Systems

Used in industrial electronics where RF signal integrity must remain stable under varying operating conditions.

Engineering and Development Platforms

Well suited for R&D environments that require reliable RF connectors for iterative testing and validation.

Frequently Asked Questions (FAQ)

Q1: What distinguishes the D060 RF series from conventional RF connectors?
The D060 RF series is designed with a strong focus on structural balance and RF consistency, rather than simply meeting basic electrical specifications.

Q2: Is the DuraLink D060 RF series suitable for new designs?
Yes. The series is ideal for new RF system development, especially where compact size and predictable performance are priorities.

Q3: Can this RF series support repeated connections?
The connector structure is designed to maintain stable contact performance across multiple mating cycles.

Q4: Does the D060 RF series support compact device integration?
Its optimized geometry makes it suitable for space-limited RF modules and modern electronic products.

Q5: Who develops and manufactures this RF series?
The DuraLink D060 RF Interconnect Series is developed and manufactured by YFS Technology (SZ) Co., Ltd.
