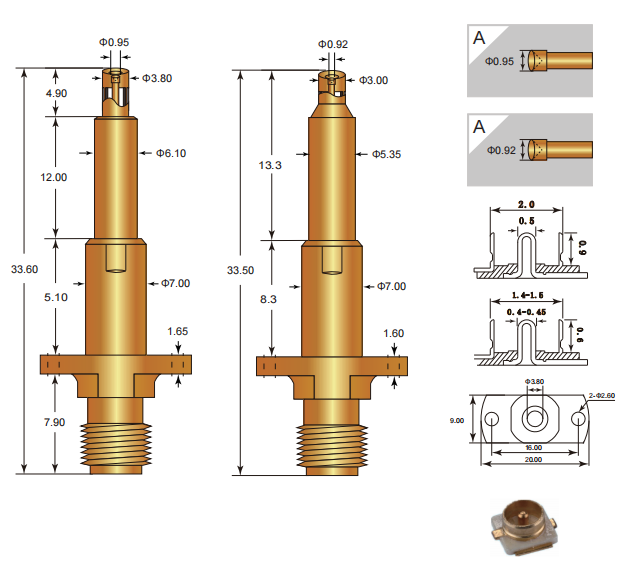

Product Parameters

Specifications

current rating:3-5A

contact resistance:<50mΩ

spring force:2N

max.travel:2.0mm

bandwidth:-0.1db@6GHZ

insertion loss:0.85dB Max.

vswr:1.50Max.(DC to 6GHz)

Materials and plating

spring:music wire,gold plated

dielectric insulator:teflon

shielding tube:brass gold plated

signal plunger:be cu gold plated

the base:Copper alloy

Product Introduction

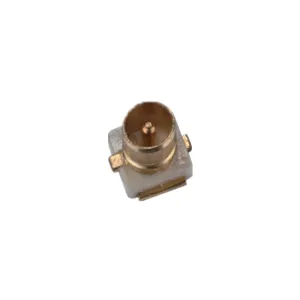

Modern RF systems demand more than just a physical connection—they require consistent signal integrity, low loss, and flexible integration in compact and challenging environments. The A092 RF series connector from YFS Technology (SZ) Co., Ltd. is engineered to meet these precise requirements.

Unlike standard coaxial connectors, the A092 series focuses on maintaining RF performance across diverse conditions, including temperature fluctuations, vibration, and repeated mating cycles. Its design caters to engineers and system integrators who prioritize reliable signal pathways, modular system integration, and long-term stability.

The series is ideal for applications where precision RF connections directly affect system performance, from communication modules to industrial RF devices. By offering multiple variants within a unified platform, the A092 series allows for scalable solutions across multiple projects or product generations.

Product Features

Optimized RF Contact Geometry

The internal contact structure is precisely engineered to ensure uniform impedance and minimal signal reflection, critical for medium-to-high frequency transmissions.

Modular Series Design

The A092 series provides multiple configurations and contact layouts within a consistent mechanical framework, enabling easy substitution or system expansion without redesigning interfaces.

Enhanced Environmental Robustness

The connector design incorporates resilient materials and protective plating, ensuring stable operation in environments with vibration, temperature variation, or high humidity.

Compact and Lightweight

Maintains high performance in minimal footprint designs, making it suitable for space-constrained boards, embedded modules, and portable devices.

Reliable Mating Cycle Performance

The mechanical interface is optimized for repeated connect/disconnect operations while maintaining stable electrical contact and consistent insertion/removal force.

Product Advantages

High Signal Integrity – Maintains stable RF performance even under stress or long-term operation.

Flexible Integration – Modular series design supports multiple variants for a unified system interface.

Durability – High-quality contacts and robust materials resist wear and environmental degradation.

Scalability – Ideal for multi-device projects or modular RF platforms.

Reduced Engineering Risk – Consistent electrical and mechanical performance reduces troubleshooting and system redesign.

Product Applications

The A092 RF Series is widely applied in cutting-edge RF and high-frequency systems, including:

Next-Generation Wireless Communication – For modules in 5G, LTE, or Wi-Fi infrastructure.

Industrial RF Control Systems – Embedded modules in smart machinery and automation.

Test & Measurement Equipment – High-stability connections in lab and field instruments.

IoT and Embedded RF Modules – Compact, repeatable connections in portable electronics.

Aerospace & Defense Systems – Environments requiring high reliability and vibration tolerance.

Frequently Asked Questions (FAQ)

Q1: What makes the A092 RF Series different from traditional RF connectors?
The series is designed for long-term stability, environmental resilience, and scalable integration, not just basic conductivity.

Q2: Can the A092 series handle repeated mating cycles?
Yes. The connector is engineered for thousands of connect/disconnect cycles while maintaining performance.

Q3: Is this series suitable for compact devices?
Absolutely. Its compact design supports high-density layouts without sacrificing RF integrity.

Q4: How does it perform in harsh conditions?
With optimized materials and contact geometry, it resists vibration, temperature swings, and humidity.

Q5: Who manufactures the A092 RF Series?
The series is developed and produced by YFS Technology (SZ) Co., Ltd., with specialized RF interconnection expertise.
