Product Introduction

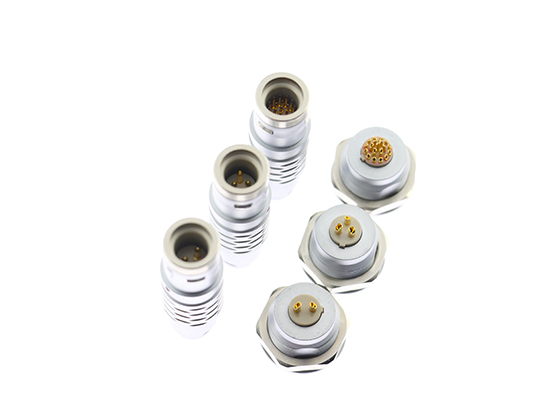

The K-Type Quick-Lock Circular Connector is a precision-designed connection interface developed to address one of the most common challenges in modern electronic systems: maintaining secure, stable connections under continuous operation and environmental stress.

In many real-world applications, connection failure is rarely caused by a single catastrophic event. Instead, it often results from gradual loosening, micro-movement, or improper disengagement over time. The K-Type Quick-Lock Circular Connector is engineered with a mechanically retained locking structure that ensures reliable engagement while allowing intentional, controlled disconnection when required.

As part of YFS Technology (SZ) Co., Ltd.’s connector solution strategy, this product focuses on risk reduction at the interface level, helping system designers minimize connection-related failures without increasing installation complexity or maintenance burden.

Product Features

Positive Mechanical Locking Structure

Locking elements engage automatically during insertion

Maintains stable retention without relying on rotational force

Reduces the likelihood of partial or incomplete engagement

Circular Interface Geometry

Even force distribution around the connector circumference

Helps maintain alignment during operation

Supports stable contact performance under movement or vibration

Controlled Release Mechanism

Designed to prevent accidental disengagement

Requires deliberate action to unlock

Enhances operational safety in sensitive systems

High-Precision Contact Arrangement

Contacts positioned to maintain consistent electrical paths

Minimizes resistance fluctuation caused by micro-movement

Supports both signal integrity and power continuity

Durable Shell Construction

Connector housing designed to resist mechanical wear

Maintains structural accuracy after repeated mating cycles

Suitable for long-term operational environments

Product Advantages

Reduced Connection-Related Failure Risk

The locking design minimizes unintended separation and micro-displacement, two common causes of intermittent electrical faults.

Stable Performance in Dynamic Conditions

The circular structure and secure retention help maintain consistent performance in systems subject to movement, vibration, or handling.

Improved System Safety

Controlled unlocking behavior prevents accidental disconnection, protecting sensitive equipment and ongoing processes.

Predictable Long-Term Operation

By maintaining consistent contact pressure and alignment, the connector supports reliable electrical behavior over extended service life.

Simplified Interface Management

Quick-lock operation reduces installation errors and simplifies connection management without sacrificing security.

Product Applications

The K-Type Quick-Lock Circular Connector is suitable for systems where connection integrity and operational safety are critical, including:

Medical monitoring and diagnostic equipment

Industrial control and automation systems

Portable electronic instruments

Transportation and onboard electronic systems

Communication and data transmission devices

Measurement and sensing platforms

Its design supports environments where continuous reliability outweighs the need for complex fastening mechanisms.

Design Philosophy and System Value

Rather than treating the connector as a passive component, the K-Type Quick-Lock Circular Connector is designed as an active reliability element within the system architecture.

By integrating mechanical retention, controlled release, and precise contact alignment into a single interface, the connector helps engineers:

Reduce system downtime caused by interface failure

Improve overall equipment stability

Lower long-term maintenance and inspection costs

Increase confidence in mission-critical connections

This approach aligns with YFS Technology (SZ) Co., Ltd.’s commitment to providing complete connector solutions, not just individual components.

Frequently Asked Questions (FAQ)

Q1: What differentiates a quick-lock circular connector from standard plug connectors?
Quick-lock connectors provide secure mechanical retention without requiring threaded engagement, reducing installation time while improving reliability.

Q2: Can this connector withstand frequent connection cycles?
Yes. The structure is designed to maintain locking performance and contact stability across repeated mating and unmating.

Q3: Is the connector resistant to vibration-related issues?
The circular locking geometry helps maintain stable engagement under vibration or movement.

Q4: Does the locking mechanism affect ease of maintenance?
No. The controlled release mechanism allows intentional disconnection while preventing accidental separation.

Q5: What factors should be considered during selection?
Engineers should evaluate pin configuration, operating environment, connection frequency, and system safety requirements.
