Product Introduction

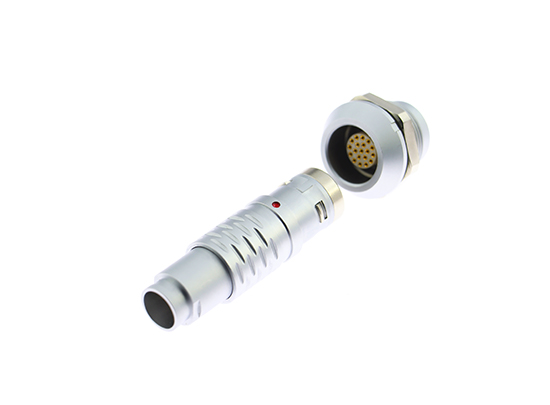

The Quick-Release Push-Pull Locking Connector is designed for systems that demand secure engagement combined with controlled disconnection, especially in environments where operational safety and connection stability are critical.

In many electrical and electronic systems, connection failure is not caused by incorrect wiring, but by unexpected separation, vibration-induced loosening, or improper handling during operation. This connector series addresses these risks through a mechanically balanced push-pull locking structure, ensuring firm retention during operation while allowing intentional and smooth release when required.

Rather than focusing solely on speed of operation, this product emphasizes connection certainty, environmental adaptability, and long-term functional reliability, making it a dependable choice for complex system architectures.

Product Features

Positive Locking with Controlled Release

Automatic locking upon full insertion

Clearly defined release action prevents accidental disengagement

Stable retention even under external movement or vibration

Environmental-Tolerant Connector Design

Structural sealing design helps protect internal contacts

Maintains connection stability in fluctuating conditions

Suitable for indoor and semi-protected outdoor environments

Optimized Contact Engagement

Contact interface designed for balanced pressure distribution

Reduces uneven wear and intermittent contact risk

Supports consistent electrical transmission

Compact Mechanical Architecture

Short axial length supports dense equipment layouts

Enables connector use in restricted installation spaces

Reduces stress on connected cables

Multiple Termination Options

Supports various cable termination and panel mounting methods

Adaptable to different system integration requirements

Facilitates flexible connector layout planning

Product Advantages

Enhanced Operational Safety

The locking mechanism minimizes unintentional separation, helping maintain system stability during movement, handling, or vibration.

Reliable Performance in Real Conditions

By addressing mechanical and environmental variables, the connector maintains dependable performance beyond ideal laboratory conditions.

Reduced Maintenance Risk

Stable engagement reduces the likelihood of intermittent faults, lowering inspection frequency and system downtime.

Improved System Integrity

Secure mechanical retention contributes directly to electrical continuity, supporting consistent system operation.

Flexible Integration Capability

The connector’s adaptable design allows it to be integrated into a wide range of electrical architectures without major redesign.

Product Applications

The Quick-Release Push-Pull Locking Connector is suitable for systems where connection reliability and operational control are essential, such as:

Precision electronic equipment

Industrial control and monitoring systems

Portable electronic devices

Transportation and onboard electronics

Measurement and inspection instruments

Safety-critical electrical assemblies

Its design supports environments where connection failure is not an option, and controlled disconnection is equally important.

Design Perspective for Engineers

When selecting a push-pull locking connector, engineers often prioritize retention strength, ease of operation, and environmental resistance. This connector series balances those requirements by ensuring that the locking force does not compromise usability, while still providing secure engagement under operational stress.

This makes it particularly suitable for applications requiring both safety and efficiency, without overcomplicating system design.

Frequently Asked Questions (FAQ)

Q1: What differentiates this connector from standard snap-fit connectors?
This connector provides a defined locking and release mechanism, offering higher retention reliability and controlled disengagement.

Q2: Can the connector withstand vibration during operation?
Yes. The locking structure is designed to maintain engagement under moderate vibration and movement.

Q3: Is it suitable for frequent connection and disconnection?
The mechanical design supports repeated mating cycles while maintaining stable contact performance.

Q4: Does the connector require special tools for operation?
No. The push-pull mechanism allows tool-free operation.

Q5: What factors should be considered during selection?
Engineers should consider electrical requirements, operating environment, connection frequency, and installation space.
