Product Introduction

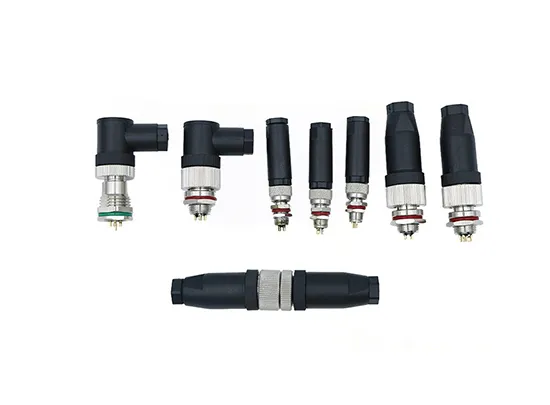

The Field-Assembled M12 Circular Connector is a flexible interconnection solution designed to support on-site wiring, rapid deployment, and customized cabling requirements in industrial environments. Unlike pre-molded connectors, this assembly-type M12 connector allows installers and system integrators to terminate cables directly in the field, offering greater adaptability during installation and maintenance.

As industrial systems become more decentralized and installation conditions more complex, customers increasingly search for M12 connectors that combine standardized interfaces with configurable assembly options. This product responds to that demand by providing a reliable circular connector platform that supports controlled assembly, stable signal or power transmission, and consistent mechanical performance under real-world operating conditions.

Developed with a focus on practicality rather than complexity, this M12 assembly connector helps reduce wiring constraints, improve installation efficiency, and support scalable industrial connection architectures.

Product Features

Field Assembly Structure

Allows cable termination without specialized factory tooling

Supports flexible cable length and routing decisions

Simplifies on-site installation and reconfiguration

Standardized M12 Interface

Fully compatible with common M12 mating standards

Ensures interchangeability across different equipment platforms

Reduces compatibility concerns during system expansion

Secure Locking Mechanism

Threaded coupling design ensures firm mechanical engagement

Maintains stable connection under vibration or movement

Prevents accidental loosening during operation

Optimized Contact Design

Precisely engineered contacts ensure reliable electrical continuity

Maintains stable performance across repeated mating cycles

Reduces signal fluctuation caused by inconsistent termination

Durable Housing Construction

Connector body designed to withstand industrial handling

Suitable for use in environments with mechanical stress

Maintains structural integrity over long-term use

Product Advantages

Greater Installation Flexibility

Field assembly enables installers to adapt cable length and routing on demand, reducing waste and avoiding delays caused by fixed cable configurations.

Reduced Downtime During Maintenance

Damaged cables or connectors can be re-terminated on site without replacing the entire cable assembly, improving service efficiency.

Improved System Scalability

Standardized M12 interfaces combined with assembly capability allow systems to expand or reconfigure without redesigning the connection layout.

Practical Cost Control

By minimizing pre-assembled cable inventory and reducing replacement costs, this connector supports better long-term cost management.

Reliable Performance in Real Conditions

Designed for practical industrial use, the connector maintains stable electrical and mechanical performance even when installation conditions vary.

Product Applications

The Field-Assembled M12 Circular Connector is suitable for industrial systems where flexible wiring and dependable connection performance are required, including:

Industrial automation equipment

Sensor and actuator connection networks

Control cabinets and distributed I/O systems

Factory machinery and production lines

Field-installed industrial devices

Its assembly-based design makes it especially valuable in projects where installation conditions cannot be fully predefined.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between an assembly M12 connector and a molded one?
Assembly connectors allow on-site cable termination, offering greater flexibility compared to fixed-length molded connectors.

Q2: Does field assembly affect connection reliability?
When assembled correctly, the connector provides stable mechanical locking and consistent electrical performance comparable to pre-assembled options.

Q3: Is this connector suitable for repeated installation or maintenance work?
Yes. The design supports repeated assembly and disassembly without compromising contact integrity.

Q4: Can this connector be used in space-limited installations?
Its compact circular format makes it suitable for installations with limited space, especially where cable routing flexibility is required.

Q5: What should be considered during connector selection?
Key considerations include cable type, required pin configuration, environmental conditions, and installation method.
