Product Introduction

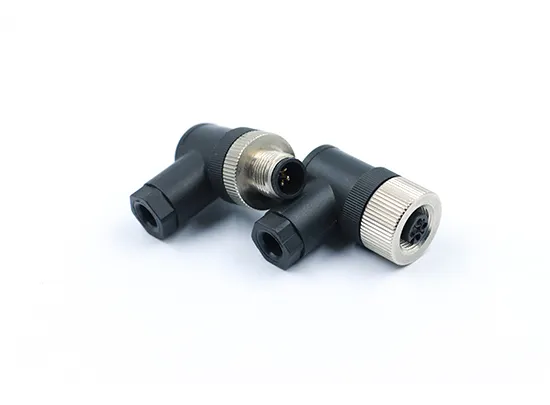

The M12 Right-Angle Field-Assembly Connector is designed for applications where on-site assembly flexibility, limited installation space, and stable signal or power transmission are equally important. Unlike pre-molded connectors that require fixed cable lengths and orientations, this connector allows technicians and engineers to assemble and adjust the cable termination directly at the installation site.

In modern industrial environments, routing constraints, cabinet density, and equipment layout often make straight connectors impractical. A right-angle configuration reduces bending stress on the cable, improves routing efficiency, and helps maintain a clean and organized connection layout. Combined with a field-assembly structure, this connector supports fast installation, simplified maintenance, and flexible system design.

Developed by YFS Technology (SZ) Co., Ltd., this connector focuses on mechanical reliability, consistent electrical performance, and ease of installation, making it suitable for a wide range of industrial and automation systems.

Product Features

Right-Angle Design for Space Optimization

The angled connector body enables efficient cable routing in confined spaces. It minimizes cable bending radius at the connection point, reducing long-term mechanical stress and improving overall system durability.

Field-Assembly Structure

Allows on-site cable termination without special tooling

Eliminates dependency on fixed cable lengths

Supports fast adjustments during installation or maintenance

Secure Locking Interface

The standardized M12 threaded coupling ensures reliable mating and resistance to vibration. Once tightened, the connection remains stable even in dynamic operating environments.

Stable Electrical Contact

Precision contact components provide consistent electrical performance across repeated connections. This helps maintain signal integrity and reduces the risk of intermittent contact.

Durable Housing Construction

The connector housing is engineered to withstand mechanical stress, frequent handling, and environmental exposure commonly found in industrial applications.

Product Advantages

Flexible Installation and Reduced Downtime

Field-assembly capability allows installers to prepare cables directly at the worksite. This reduces lead times, simplifies spare parts management, and shortens system downtime during upgrades or repairs.

Improved Cable Management

The right-angle configuration supports clean routing along panels, enclosures, or cable trays, improving system organization and reducing accidental cable strain.

Adaptable to Changing System Requirements

As equipment layouts evolve, this connector can be reassembled or repositioned without replacing the entire cable assembly, offering long-term flexibility.

Cost-Effective System Integration

By reducing the need for customized cable assemblies, the connector helps lower inventory complexity and overall integration costs.

Reliable Performance in Industrial Conditions

Designed for vibration-prone and mechanically demanding environments, the connector maintains stable performance over extended periods of operation.

Product Applications

The M12 Right-Angle Field-Assembly Connector is suitable for a variety of industrial and commercial systems where installation flexibility and space efficiency are essential, including:

Industrial automation equipment

Sensors and actuators in control systems

Factory machinery and production lines

Robotics and motion control assemblies

Transportation and rail control systems

Industrial networking and communication devices

Its design supports environments where frequent installation adjustments or limited mounting space are common challenges.

Frequently Asked Questions (FAQ)

Q1: What is the main benefit of a field-assembly M12 connector?
Field-assembly connectors allow cables to be terminated on site, providing flexibility in cable length and reducing installation constraints.

Q2: Why choose a right-angle M12 connector instead of a straight one?
A right-angle connector helps optimize space, reduce cable stress, and improve routing in compact or enclosed installations.

Q3: Is this connector suitable for vibration-heavy environments?
Yes. The threaded M12 coupling provides a secure mechanical connection that resists loosening under vibration.

Q4: Can the connector be reassembled if system layout changes?
Yes. One of its key advantages is the ability to disassemble and re-terminate the cable as system requirements evolve.

Q5: What should be considered when selecting this connector?
Key factors include cable type, installation space, environmental conditions, and whether on-site assembly is required.
