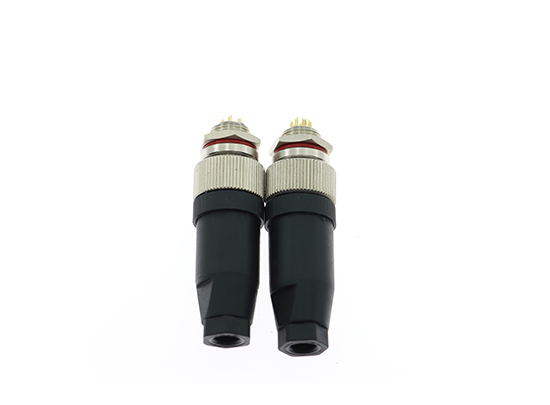

The M12 Field-Assembled Straight Connector is designed to meet the growing demand for flexible installation, reliable signal and power transmission, and long-term stability in industrial environments. As automation systems become more decentralized and installation conditions more varied, connectors must offer not only electrical reliability but also on-site assembly adaptability.
Unlike pre-molded connectors with fixed cable lengths and pin configurations, this connector allows engineers to assemble and terminate cables directly in the field. This approach reduces downtime, minimizes cable waste, and enables rapid configuration changes without redesigning the entire wiring system.
With a standardized M12 interface and straight connector structure, this product supports consistent mating behavior while offering the freedom required for modern industrial installations.
Allows cable termination directly at the installation site
Eliminates the need for pre-defined cable lengths
Supports fast adjustments during system commissioning
Compatible with widely used M12 mating standards
Ensures secure and repeatable connections
Simplifies integration into existing industrial systems
Optimized for linear cable routing
Reduces bending stress at the cable exit
Supports clean and organized wiring layouts
Provides reliable locking under vibration and movement
Maintains stable electrical contact during operation
Enhances connection integrity in demanding environments
Designed to withstand mechanical stress during assembly
Supports stable performance in industrial conditions
Protects internal contacts from external interference
By allowing on-site assembly, this connector adapts easily to changing layouts, reducing dependency on pre-made cable assemblies and shortening project lead times.
Damaged cables or connectors can be re-terminated without replacing entire cable runs, improving system availability and lowering maintenance costs.
The standardized M12 interface ensures compatibility with a wide range of sensors, actuators, and industrial devices, supporting multi-vendor system integration.
The straight connector design supports efficient cable routing, helping engineers maintain organized control cabinets and field installations.
Minimizing cable waste and simplifying inventory management helps reduce overall installation and lifecycle costs.
The M12 Field-Assembled Straight Connector is widely used in industrial systems where flexibility, reliability, and fast deployment are critical, including:
Industrial automation and control systems
Factory sensor and actuator connections
Motion control and drive systems
Industrial communication networks
Equipment wiring requiring on-site customization
Its adaptability makes it especially suitable for projects involving frequent layout changes or phased system expansion.
Q1: What is the main advantage of a field-assembled M12 connector?
It allows cables to be terminated on-site, offering flexibility and reducing dependency on pre-made cable assemblies.
Q2: Is this connector compatible with standard M12 devices?
Yes. It follows standardized M12 mating interfaces, ensuring compatibility with commonly used industrial equipment.
Q3: Does field assembly affect connection reliability?
When properly assembled, the connector provides stable electrical and mechanical performance comparable to factory-assembled solutions.
Q4: Can this connector be reused if the cable needs to be replaced?
Yes. The design supports disassembly and re-termination, making it suitable for maintenance and system modifications.
Q5: What should be considered during installation?
Proper cable preparation, correct tightening torque, and alignment are important to ensure optimal performance and long-term reliability.
