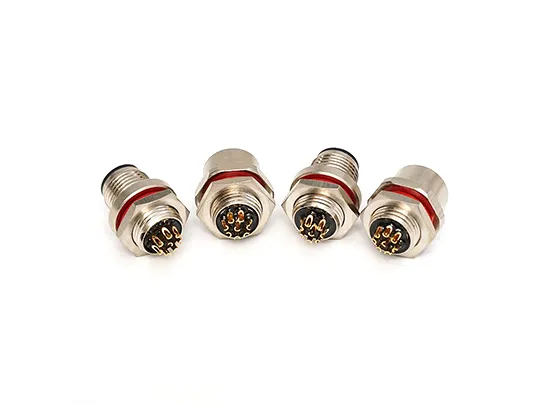

The M12 Panel Mount Circular Connector is designed to provide a secure, standardized, and space-efficient interface for signal and power transmission through equipment panels. Unlike cable-end connectors, panel-mounted M12 connectors act as a fixed interface point, allowing systems to be modular, serviceable, and easier to integrate.
In modern industrial and electronic systems, reliability is often determined at the interface between internal circuitry and external cabling. This connector series focuses on stable panel fixation, precise mating alignment, and long-term connection integrity, ensuring consistent performance even in environments subject to vibration, frequent connection cycles, or limited installation space.
By combining a compact M12 form factor with a robust panel-mount structure, this product supports clean system layouts while maintaining compatibility with widely adopted M12 connection standards.
Designed for front or rear panel installation
Provides firm mechanical retention to prevent loosening over time
Maintains stable positioning under vibration or repeated mating
Compatible with common M12 mating connectors
Ensures interchangeability across different systems
Simplifies sourcing and system expansion
Small footprint supports dense panel layouts
Optimizes space utilization inside enclosures
Suitable for compact control units and devices
Precision contact alignment reduces connection variability
Maintains consistent signal or power transmission
Minimizes contact degradation during repeated use
Supports multiple internal termination methods
Allows adaptation to different wiring and PCB designs
Facilitates efficient internal system integration
Panel-mounted connectors create a clear boundary between internal circuits and external cables, making systems easier to design, document, and maintain.
Fixed panel interfaces allow cables to be connected or replaced without accessing internal components, reducing downtime during maintenance.
The secure mounting structure helps prevent movement or misalignment that could otherwise affect electrical performance over time.
Using a standardized M12 panel connector enables consistent interface design across different products or equipment generations.
The M12 Panel Mount Circular Connector is widely used in applications where reliable panel-based connectivity is required, including:
Industrial automation equipment
Control cabinets and junction boxes
Sensors and actuators with panel interfaces
Industrial communication and signal routing systems
Compact machinery and modular devices
Its design supports environments where clean installation, standardized interfaces, and dependable operation are critical.
Q1: What is the main benefit of a panel mount M12 connector compared to cable connectors?
Panel mount connectors provide a fixed interface point, improving system organization and making cable replacement easier without opening the enclosure.
Q2: Is this connector compatible with standard M12 cables?
Yes. The connector follows standard M12 interface dimensions, ensuring compatibility with commonly used M12 mating connectors.
Q3: Can the connector be installed from either side of the panel?
Depending on the design, it can support front or rear panel installation, offering flexibility during system assembly.
Q4: How does panel mounting improve reliability?
A fixed mounting point reduces mechanical stress on internal wiring and prevents connector movement that could degrade electrical contact.
Q5: What factors should be considered when selecting a panel mount connector?
Key considerations include panel thickness, installation method, internal termination type, electrical requirements, and environmental conditions.
