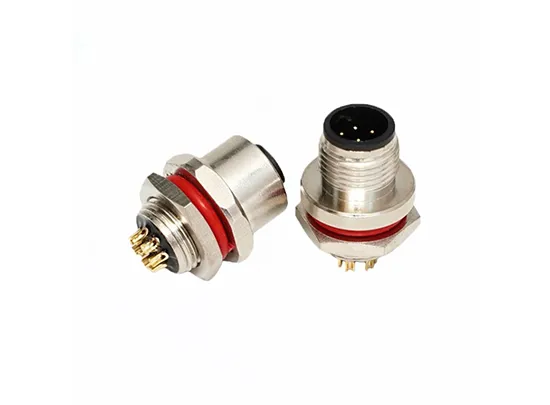

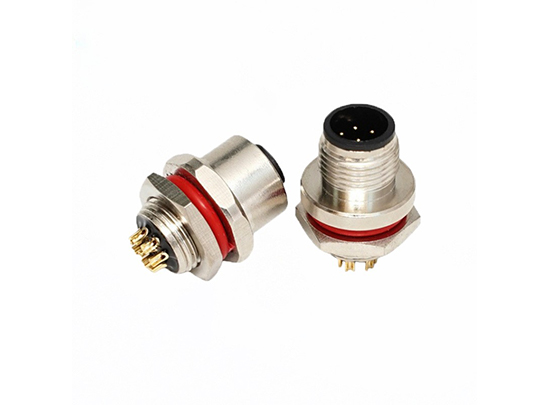

Product Introduction

The M12 connector is a standardized circular connector widely used in industrial automation, primarily for signal and power connections between sensors, actuators, fieldbus systems, and industrial equipment. Its compact design, reliable mechanical locking mechanism, and excellent environmental protection make it an indispensable connection component in modern industrial equipment.

Shenzhen Yuanfengsheng Technology Co., Ltd., based on the application needs of multiple industries, has systematically designed and optimized the M12 connector in terms of structural stability, electrical performance, and environmental adaptability. The product range covers multiple encoding formats such as A/B/D/X, meeting the needs of different signal types, transmission rates, and interface standards. It also supports various installation methods including cable connection, panel mounting, and device-side connection.

The M12 connector is not only suitable for standard industrial environments but also maintains stable operation under complex conditions such as vibration, dust, oil, and humidity, helping customers improve system reliability and reduce maintenance costs.

Product Features

Standardized Interface Design

Complies with IEC international standards, possessing excellent versatility and interchangeability, facilitating equipment integration and maintenance.

Multiple Encoding and Specification Options Available

Offers multiple encoding formats such as A, B, D, and X, supporting various signal, data, and power transmission requirements.

Reliable Threaded Locking Structure

Utilizes M12 threaded connections, maintaining a stable connection even under vibration or movement.

Excellent Environmental Protection Performance

Possesses IP67 and higher protection ratings, effectively resisting dust, moisture, and oil intrusion.

Flexible Connection Methods

Supports various structures including straight, bent, cable, and panel connections, adapting to different equipment layouts.

Product Advantages

Stable Electrical Performance

Low contact resistance ensures stable signal transmission, suitable for industrial systems operating continuously for extended periods.

Compact Structure, Space Saving

Small size and flexible layout, particularly suitable for space-constrained automated equipment and control systems.

Adaptable to Various Industrial Environments

Maintains reliable connection performance in environments with high humidity, oil mist, and mild corrosion.

Customization Supported

Custom designs can be created based on customer requirements for cable length, interface type, pin configuration, and application scenarios.

Facilitates System Standardization and Upgrades

Standard interface design facilitates modular equipment development, reducing replacement and expansion costs later.

Product Applications

M12 connectors are widely used in industrial and professional fields with high stability and reliability requirements, including but not limited to:

Industrial Automation Equipment

Signal and power connections for PLCs, sensors, actuators, industrial control units, etc.

Smart Manufacturing and Robotics Systems

Data and control connections in robot joints, end effectors, and automated production lines.

Rail Transportation and Mobile Equipment

Reliable connection requirements for vehicle control systems, testing equipment, and auxiliary systems.

Automotive Electronics and Testing Equipment

Connection applications in production inspection, functional testing, and workshop automation systems.

Industrial Vision and Inspection Systems

Data transmission connections between industrial cameras, vision sensors, and control modules.

FAQ (Frequently Asked Questions)

Q1: What types of signal transmission are suitable for M12 connectors?

A: Depending on the encoding format, M12 connectors can be used for analog signals, digital signals, fieldbus, and high-speed data transmission applications.

Q2: Do M12 connectors support outdoor or humid environments? A: The product has an IP67 or higher protection rating, suitable for use in humid, dusty, or slightly oily environments.

Q3: Can it be customized to project requirements?

A: Yes. Customization is supported in pin configuration, cable specifications, interface type, and other aspects.

Q4: Is the M12 connector difficult to install?

A: It adopts a threaded locking structure, making installation simple, connection reliable, and maintenance convenient.

Q5: Is it suitable for industrial equipment that operates continuously for extended periods?

A: The product design fully considers industrial-grade requirements and is suitable for long-term stable operation.
