Product Introduction

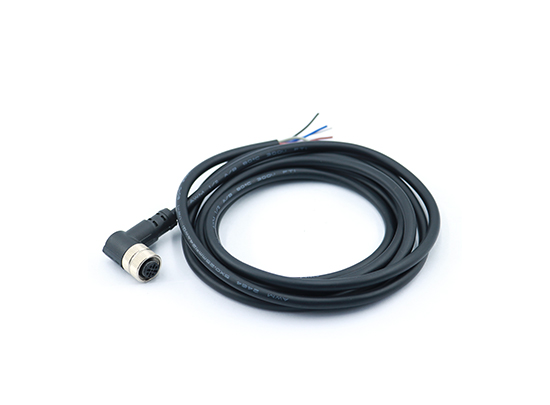

The overmolded M12 connector Cable Assembly is a robust interconnection solution designed to deliver stable signal and power transmission in demanding industrial environments. By integrating standardized M12 connector interfaces with precision overmolding technology, this cable assembly provides enhanced mechanical protection, environmental sealing, and long-term reliability.

Unlike traditional assembled connectors that rely on separate housings and strain relief components, the overmolded structure forms a single, unified connection interface, significantly reducing potential failure points. This makes the product especially suitable for systems exposed to vibration, moisture, oil mist, temperature variation, or frequent movement.

Developed with industrial automation and field installation requirements in mind, this M12 overmolded cable assembly supports consistent performance throughout its service life while simplifying installation and maintenance processes.

Product Features

Integrated Overmolding Structure

One-piece molding between connector and cable

Eliminates gaps that may allow moisture or contaminants to enter

Enhances mechanical strength at the cable exit point

Standardized M12 Interface

Compatible with common M12 mating connectors

Supports multiple pin configurations depending on system requirements

Ensures reliable mating and secure locking

Enhanced Environmental Protection

Overmolded housing improves resistance to dust, moisture, and oil

Suitable for harsh industrial conditions

Maintains stable performance under fluctuating temperatures

Optimized Cable Management

Molded strain relief reduces bending stress on internal conductors

Helps prevent cable fatigue during repeated movement

Supports longer service life in dynamic installations

Stable Electrical Performance

Controlled manufacturing process ensures consistent conductor alignment

Reduces signal interruption caused by mechanical stress

Supports both signal and power transmission requirements

Product Advantages

Improved Connection Reliability

The overmolding process creates a solid interface between the connector and cable, significantly reducing the risk of loosening, micro-movement, or internal conductor damage over time.

Reduced Installation Complexity

With the connector and cable integrated as a single unit, installation becomes more straightforward, minimizing wiring errors and shortening deployment time in the field.

Enhanced Durability in Industrial Environments

The molded housing protects internal structures from mechanical shock, vibration, and environmental exposure, helping maintain stable operation in continuous-use scenarios.

Lower Maintenance Requirements

By eliminating common failure points associated with assembled connectors, this cable assembly reduces the frequency of inspection, repair, or replacement.

Consistent Quality Across Production Batches

Controlled molding and assembly processes ensure uniform performance, supporting large-scale deployment with predictable results.

Product Applications

The Overmolded M12 Connector Cable Assembly is widely used in systems where reliable connectivity and environmental resistance are essential, including:

Industrial automation equipment

Sensors and actuators

Field-installed control systems

Industrial communication networks

Machinery requiring vibration-resistant connections

Outdoor or semi-outdoor electrical installations

Its design supports both fixed and semi-dynamic applications where long-term stability is critical.

Product Design Considerations

When selecting an overmolded M12 cable assembly, system designers typically consider:

Required pin configuration and signal type

Cable length and routing conditions

Environmental exposure levels

Installation space constraints

Expected movement or vibration during operation

This product is designed to balance these factors, providing a dependable interconnection solution without unnecessary complexity.

Frequently Asked Questions (FAQ)

Q1: What is the benefit of overmolding compared to standard assembled connectors?
Overmolding creates a sealed, unified structure that improves mechanical strength and environmental resistance, reducing common failure points.

Q2: Is this cable assembly suitable for outdoor use?
Yes. The overmolded design offers enhanced protection against moisture and dust, making it suitable for outdoor or exposed environments.

Q3: Can the cable length be customized?
Cable length can be selected based on system requirements, supporting flexible installation layouts.

Q4: Does overmolding affect signal stability?
No. The controlled manufacturing process helps maintain consistent electrical performance by protecting internal conductors from mechanical stress.

Q5: What types of systems typically use M12 overmolded cable assemblies?
They are commonly used in industrial automation, sensor networks, control systems, and machinery requiring reliable field connections.
