Parameters

duribility:10,000 cycles

Rated Current:20A-120A

Temperature Rise:30K maximum.

BTB connecting distance:H±0.50mm(customizable)

Product Introduction

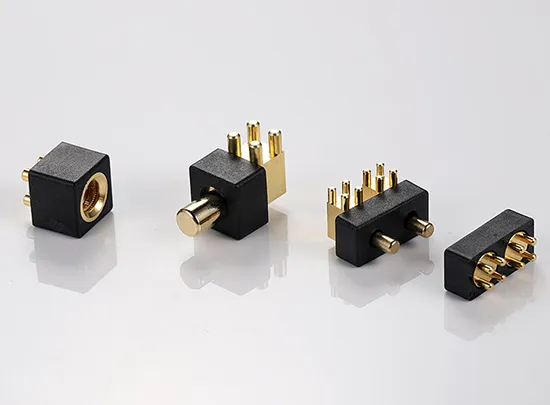

Industrial-Grade Board-to-Board Connectors are designed to provide stable and reliable electrical connections between printed circuit boards operating in demanding environments. Compared with standard electronic interconnects, this type of board-to-board connector emphasizes structural strength, environmental tolerance, and long-term operational stability.

At YFS Technology (SZ) Co., Ltd, industrial-grade board-to-board connectors are developed for applications where electronic systems must maintain consistent performance under vibration, temperature variation, and extended operating cycles. These connectors form an important part of our industrial connector solution portfolio, supporting robust system-level integration rather than simple board linkage.

Product Description

Industrial electronic equipment often operates under conditions that place higher stress on internal connections. Industrial-grade board-to-board connectors are used to link control boards, interface boards, and functional modules while maintaining stable contact performance over time.

YFS Technology designs this connector category with a focus on mechanical retention, contact stability, and installation reliability. The connector structure helps reduce the risk of loosening, misalignment, or signal instability during long-term operation. This makes it suitable for industrial systems where maintenance access may be limited and reliability is critical.

Product Features

Enhanced Mechanical Strength

Connector housing and contact structure are designed to withstand mechanical stress during installation and operation.

Stable Contact Performance

Optimized contact design supports consistent electrical transmission even under vibration or movement.

Controlled Board Alignment

Accurate mating structure helps maintain consistent board spacing and reduces mechanical strain.

Industrial Assembly Compatibility

Designed to support stable installation processes in industrial production environments.

Application-Focused Design

Connector configurations are developed based on real industrial system requirements rather than generic layouts.

Product Advantages

Reliability-Oriented Design

YFS Technology prioritizes long-term connection stability, making this board-to-board connector suitable for continuous industrial operation.

Consistent Manufacturing Quality

Strict process control ensures uniform performance across production batches.

Structural Adaptability

Connector structure can be adjusted to match different PCB thicknesses and mounting conditions.

Reduced Maintenance Risk

Stable mechanical retention helps minimize connection failures in systems with limited service access.

Integration into Industrial Connector Solutions

This product can be combined with other industrial connectors and assemblies to form complete interconnection systems.

Product Applications

Industrial-grade board-to-board connectors are widely used in applications where system stability and durability are essential:

• Industrial automation controllers

• Factory equipment electronic modules

• Rail transit control systems

• Energy and power management equipment

• Robotics and motion control systems

• Industrial communication devices

• Embedded control platforms

These applications benefit from dependable board-level connectivity and reduced failure risk.

Product Details

This industrial-grade board-to-board connector category is available in multiple structural options to support different industrial system architectures. Design considerations include mechanical reinforcement, contact stability, and secure mating performance.

Material selection and surface treatment are optimized to support long-term operation in industrial environments. Each connector is designed to maintain stable electrical performance while supporting reliable mechanical engagement between circuit boards.

Frequently Asked Questions (FAQ)

Q1: What distinguishes an industrial-grade board-to-board connector from standard types?
Industrial-grade connectors focus on mechanical durability, stable contact performance, and long-term reliability.

Q2: Are these connectors suitable for vibration-prone environments?
Yes. Their structure is designed to maintain stable mating under vibration and movement.

Q3: Can they be used in continuous operation systems?
They are designed to support long operating cycles with minimal performance degradation.

Q4: Can structural parameters be adapted for specific industrial projects?
Yes. Connector structure can be adjusted to meet different installation and system requirements.

Q5: How do these connectors improve system stability?
By reducing the risk of loosening, misalignment, and contact instability during operation.
