Product introduction

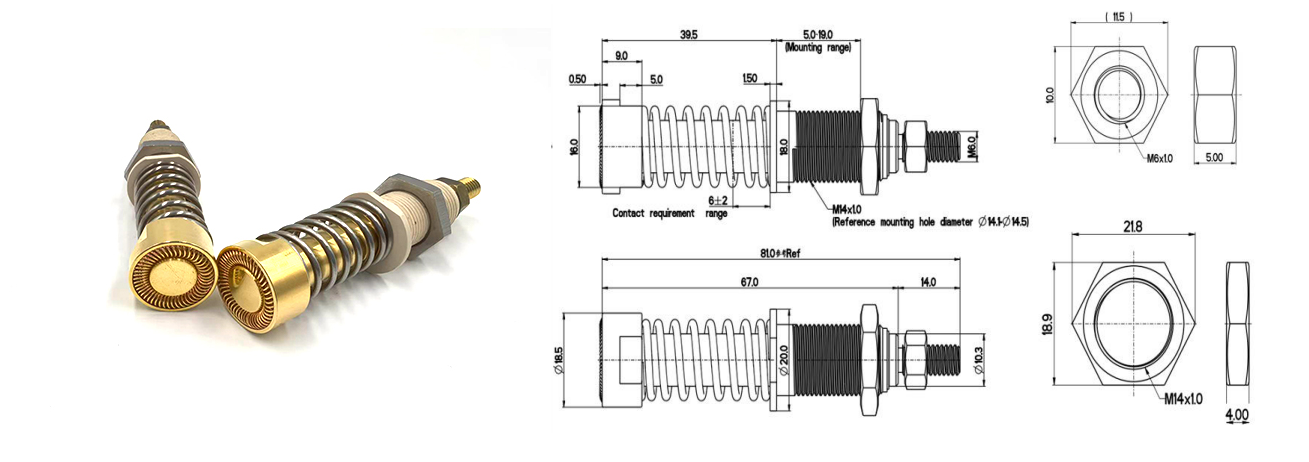

A butt contact is an energizing connector that functions as a high current probe by directly pressing it to a contact surface.

The butt contact can flexibly track the uneven surface of a contact point and enables a long-lasting and stable electrical connection. In shipping inspection, using a butt contact helps to simplify work (time reduction) and facilitates design automation. Globetech can inspect and propose a press type butt contact (press type) based on the electrodes’ shapes on the equipment side.

Traditional solutions include using a screw or a standard contact probe to manually tighten a cable to a terminal block. In contrast, butt contacts provide a superior solution because they absorb the friction when they come in contact with an uneven surface. Thus, a long-lasting and stable electrical connection is ensured.

Product parameters

Usable temperature: -40°C to +140°C2.

Rated current: 230A3.

Voltage: If the fixing plate is metal,please use it at less than 200VAC/DC4.

Estimated durability: 100,000 to1,000,000 cycles5.

Pressurizing spring :16N-29N

Product Features

Design can be customized to fit your requirements

Can handle current up to 2,000 A

Passed 1 million life cycle tests (an example of our strict in-house quality control)

Coil spring contact flexibly tracks uneven contact surfaces

Stable energization by having multi-point contacts

Will not easily scratch the connection destination (unlike spring probes)

Materials can be changed to suit high temperature and vacuum environment applications

Supports four-terminal sensing by adding a voltage terminal

Product Applications

The 203A series high-current probes are widely used in industries and scenarios with high requirements for current and contact reliability, including but not limited to:

New energy and power battery testing (battery packs, cells, BMS)

Power supply and power module testing (AC/DC, DC/DC, power adapters)

Automotive electronics and vehicle system testing

Industrial automation equipment functional testing

Energy storage systems and inverter testing

Online testing of electronic manufacturing production lines (ICT/FCT)

FAQ (Frequently Asked Questions)

Q1: Is the 203A series suitable for long-term high-current operation?

A: This series has fully considered high-current conditions during the design phase. Through low resistance and stable structural design, it is suitable for long-term and high-frequency use scenarios.

Q2: Does it support non-standard specification customization?

A: Yes. Different lengths, strokes, elasticity, and mounting structures can be customized according to application requirements to meet specific testing or connection requirements.

Q3: How does the probe perform in terms of lifespan under high-frequency use?

A: Under reasonable operating conditions, the 203A series can maintain stable performance and is suitable for automated production lines and high-frequency testing environments.

Q4: Is it suitable for automated testing equipment?

A: Absolutely. This series boasts a stable structure and high consistency, facilitating integration into various automated testing systems.

Q5: How can I ensure optimal performance during use?

A: It is recommended to keep the contact surfaces clean and avoid exceeding the rated stroke and current range to extend the product's lifespan.
