Product parameters

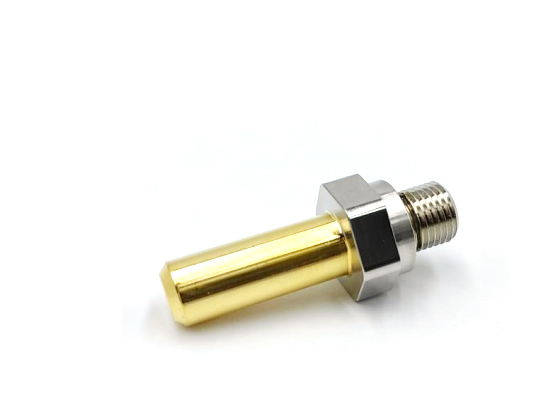

Product Name: Socket & Pin

Application for New Energy Electric Vehicles Connectors:

European standard IEC 62196-1/2/3, American standard J1772, Chinese standard GB 20234.1/2/3

Full set of charging connectors using sockets:

American standard J1772 uses pins. Sockets: 1.58mm; 2.8mm; 3.6mm European standard IEC 62196-1/2/3 uses pins and sockets: 3mm; 6mm

The national standard GB20234.1/2/3 uses pins and sockets: 3mm; 6mm

Electroplating specification: Silver plating

Materials: Brass, T2 copper Customized electroplating specifications and materials can be provided according to customer requirements.

In addition, we have a complete set of connector industry sockets:

1.5/3/5.7/6/8/9.07/10/12/14/15/16/18/20/22mm - 28mm

We can customize the specific current rating according to customer requirements.

Our company also has spring components for shielding purposes, which facilitate quick shielding of the interface.

Specifications: 35mm2, 50mm2, 75mm2, 90mm2, etc.

They can be customized according to the individualized needs of customers. In the field of new energy, let the current flow freely here!!

Product Introduction

The Precision PCB Pin Header Connector is a fundamental yet critical component used to establish reliable electrical connections between printed circuit boards or between a PCB and peripheral modules. Commonly referred to as a “pin header,” this connector provides a structured and stable interface for signal transmission, power distribution, and modular circuit expansion.

At YFS Technology (SZ) Co., Ltd, pin headers are developed as part of a complete connector solution rather than a standalone commodity. Each design focuses on electrical stability, mechanical alignment, and compatibility with modern PCB assembly processes. By optimizing pin geometry, material selection, and plating processes, our pin header connectors deliver consistent performance across a wide range of electronic applications.

Precision PCB Pin Header Connectors are widely used in applications where flexibility, scalability, and serviceability are required. They allow engineers to design modular systems that can be easily assembled, tested, and maintained, while ensuring dependable electrical contact throughout the product lifecycle.

Product Features

Accurate Pin Alignment

The connector features precisely positioned pins that ensure consistent spacing and alignment with PCB pads or mating sockets. This helps reduce assembly errors and improves soldering quality.

Reliable Electrical Contact

Each pin is designed to maintain stable contact resistance, supporting dependable signal and power transmission during long-term use.

Multiple Configuration Options

Available in various pin counts, row configurations, and mounting styles, the pin header connector can be adapted to different circuit layouts and design requirements.

PCB Assembly Compatibility

Designed for standard through-hole or surface-mount processes, the connector supports both manual and automated assembly methods.

Durable Structural Design

The insulating housing provides mechanical support and electrical isolation, helping maintain connector integrity under normal operating conditions.

Product Advantages

Flexible Integration in Electronic Systems

Pin header connectors allow engineers to easily connect, disconnect, or expand circuit modules, making system design more flexible and scalable.

Cost-Effective Connection Solution

Compared to more complex interconnect systems, pin headers provide a practical and economical solution without sacrificing electrical reliability.

Stable Performance Over Time

Optimized materials and plating processes help maintain consistent contact quality, even after repeated mating cycles.

Simplified Maintenance and Testing

Modular connections make it easier to replace, upgrade, or test components without redesigning the entire system.

Connector Solution Support from YFS Technology

Beyond product supply, YFS Technology assists customers with connector selection, layout optimization, and application matching to ensure reliable system-level performance.

Product Applications

Precision PCB Pin Header Connectors are widely used across multiple industries and electronic systems:

Industrial control and automation equipment

Communication and networking devices

Embedded computing and development boards

Consumer electronics and smart devices

Medical electronic instruments

Automotive electronic modules

Robotics and intelligent hardware systems

Power management and monitoring circuits

Frequently Asked Questions (FAQ)

Q1: What is a pin header connector mainly used for?
A: Pin header connectors are used to create reliable electrical connections between PCBs or between a PCB and external modules for signal or power transmission.

Q2: Can pin headers be used for both signal and power connections?
A: Yes. Depending on the pin design and configuration, pin headers can support signal transmission, low-current power delivery, or mixed applications.

Q3: Are these connectors suitable for automated PCB assembly?
A: Yes. The connectors are compatible with standard PCB assembly processes, including automated soldering methods.

Q4: How do pin headers support modular system design?
A: They allow components or boards to be easily connected or replaced, enabling modular design, faster development, and easier maintenance.

Q5: Does YFS Technology provide customized pin header solutions?
A: Yes. Pin configuration, pin length, row spacing, and other parameters can be customized to meet specific project requirements.
