Design Considerations for High-Current Spring-Loaded Contacts

Industry Background and Market Demand

High-current spring-loaded contacts are critical components in power distribution systems, electric vehicles (EVs), renewable energy infrastructure, and industrial automation. As industries shift toward electrification and higher power densities, the demand for reliable, low-resistance electrical connections has intensified. These contacts must handle currents ranging from tens to thousands of amperes while maintaining stable performance under thermal cycling, vibration, and mechanical wear.

The market is driven by stricter efficiency standards, the need for compact designs, and the rise of high-power applications such as battery management systems (BMS) and fast-charging stations. Manufacturers must balance electrical performance, durability, and cost-effectiveness to meet diverse industry requirements.

Core Concepts and Key Technologies

Spring-loaded contacts, also known as sliding contacts or plunger contacts, rely on a spring mechanism to maintain consistent pressure against a mating surface. This ensures low electrical resistance and reliable conductivity even under movement or thermal expansion. Key design principles include:

- Contact Force Optimization: Sufficient spring force minimizes contact resistance but must avoid excessive wear.

- Current Density Management: Proper material selection and geometry prevent localized overheating.

- Wear Resistance: Coatings and material hardness determine longevity in high-cycle applications.

Product Structure, Materials, and Manufacturing

Structural Design

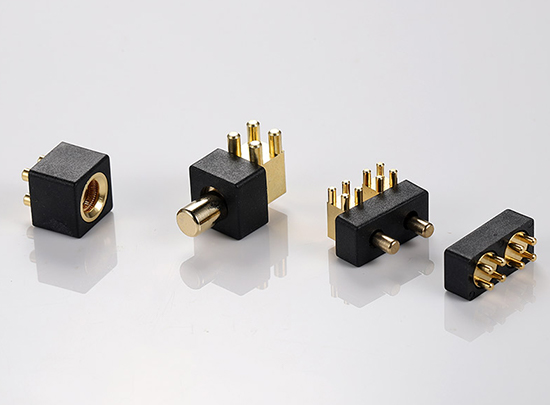

A typical high-current spring-loaded contact consists of:

1. Plunger/Piston: The moving conductive element, often made of copper alloys or plated materials.

2. Spring Mechanism: Provides consistent contact force; materials include stainless steel or beryllium copper for fatigue resistance.

3. Housing/Guide: Ensures alignment and may include insulation for high-voltage applications.

Material Selection

- Base Materials: High-conductivity copper alloys (C18150, C17200) are common, with silver or gold plating to reduce oxidation.

- Spring Materials: Beryllium copper (C17200) offers high elasticity and thermal stability.

- Coatings: Electroless nickel or tin plating improves corrosion resistance.

Manufacturing Processes

- Precision Machining: CNC turning or stamping ensures tight tolerances for plungers.

- Heat Treatment: Enhances spring durability and conductivity.

- Plating Processes: Electroplating or PVD coatings optimize surface properties.

Critical Performance Factors

1. Contact Resistance: Must remain stable under thermal and mechanical stress.

2. Thermal Management: Heat dissipation prevents degradation; designs may integrate cooling fins or thermal pads.

3. Mechanical Endurance: Spring fatigue and contact wear affect lifespan.

4. Environmental Resistance: Sealing against dust, moisture, and chemicals is crucial for harsh environments.

Supplier Selection Criteria

When sourcing high-current contacts, consider:

- Material Traceability: Certified alloys and plating processes ensure consistency.

- Testing Capabilities: Suppliers should provide data on contact resistance, cycle life, and thermal performance.

- Customization Flexibility: Ability to adjust force, stroke, or materials for specific applications.

Common Challenges and Industry Pain Points

1. Fretting Corrosion: Micro-movement oxidizes contacts, increasing resistance. Solutions include lubricants or noble metal coatings.

2. Thermal Expansion Mismatch: Dissimilar materials can warp or lose contact pressure.

3. Cost vs. Performance Trade-offs: High-performance materials (e.g., gold plating) raise costs but improve reliability.

Applications and Use Cases

- Electric Vehicles: Battery cell interconnects and charging ports.

- Energy Storage Systems: Busbar connections in grid-scale batteries.

- Industrial Robotics: Slip rings and power delivery to moving arms.

- Aerospace: Lightweight, high-reliability contacts for avionics.

Trends and Future Directions

1. Higher Power Density: Designs are shrinking while handling more current.

2. Smart Contacts: Integrated sensors for real-time resistance monitoring.

3. Sustainable Materials: Recyclable alloys and reduced rare-metal coatings.

FAQ

Q: How does contact force affect performance?

A: Insufficient force increases resistance, while excessive force accelerates wear. Optimal force depends on current load and material properties.

Q: What plating is best for corrosive environments?

A: Gold plating offers superior corrosion resistance but is costly. Silver or tin may suffice with proper sealing.

Q: How can thermal runaway be prevented?

A: Use materials with high thermal conductivity, design for heat dissipation, and monitor temperature in critical applications.

By addressing these design considerations, engineers can develop spring-loaded contacts that meet the evolving demands of high-current applications while ensuring reliability and efficiency.
