Design Structure and Performance of Spring-Loaded Contacts in Charging and Testing Applications

2025-12-30 09:33:42

As electronic devices become more compact and modular, reliable electrical contact solutions are increasingly important. In many charging and testing applications, traditional fixed contacts are not flexible enough to accommodate alignment tolerances, repeated connections, or modular designs. Spring-loaded contacts, commonly known as pogo pins, are widely used to address these challenges.

This article explores the design structure and performance characteristics of spring-loaded contacts in charging and testing applications, covering mechanical structure, electrical performance, durability, manufacturing quality, and application reliability. It is intended to help engineers and technical buyers better understand how to select and design spring-loaded contact solutions for demanding applications.

The Role of Spring-Loaded Contacts in Modern Electronic Systems

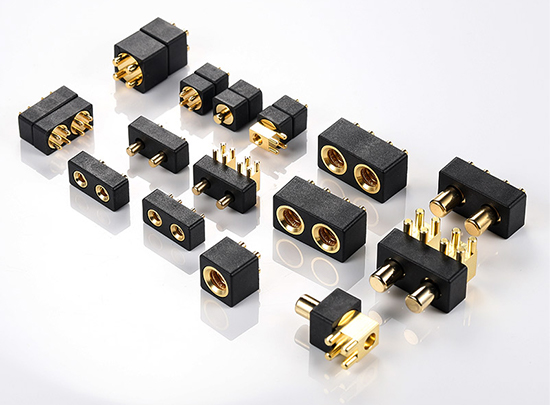

Spring-loaded contacts are designed to provide reliable electrical connections through a movable contact mechanism. Unlike fixed contacts, they can compensate for misalignment, vibration, and dimensional tolerances, making them ideal for applications where precise positioning cannot always be guaranteed.

In charging systems, spring-loaded contacts are commonly used in docking stations, charging cradles, and modular power interfaces. In testing applications, they are widely used in test fixtures, programming interfaces, and functional testing systems.

Their ability to maintain consistent contact force over repeated cycles makes spring-loaded contacts particularly suitable for applications that require frequent connection and disconnection.

Mechanical Structure of Spring-Loaded Contacts

The mechanical structure of spring-loaded contacts typically consists of three main components: the plunger, the spring, and the barrel.

The plunger is the moving contact element that interfaces with the mating surface. Its shape and surface finish affect contact stability and wear characteristics. Different plunger tip designs are used to suit flat pads, curved surfaces, or test points.

The spring provides the contact force required to maintain stable electrical connection. Spring characteristics such as force, travel distance, and fatigue resistance directly influence contact reliability and lifespan.

The barrel houses the internal components and provides structural support. Barrel design affects mechanical strength, alignment, and mounting method, whether through-hole, surface-mount, or press-fit.

Proper coordination of these components ensures smooth movement, consistent contact force, and reliable performance over the product’s service life.

Electrical Performance and Contact Stability

Electrical performance is a critical factor in charging and testing applications.

Spring-loaded contacts must maintain low and stable contact resistance to ensure efficient power transfer and accurate signal transmission. Variations in contact resistance can lead to voltage drops, power loss, or measurement errors.

Contact force plays a key role in electrical stability. Insufficient force may result in intermittent contact, while excessive force can accelerate wear or damage mating surfaces. Proper spring design helps achieve a balance between electrical reliability and mechanical durability.

Surface plating on the plunger and barrel also affects electrical performance. High-quality plating helps reduce oxidation, improve conductivity, and maintain stable contact resistance over repeated cycles.

Durability and Mating Cycle Performance

Charging docks and test fixtures often require thousands or even millions of connection cycles over their lifetime. Durability is therefore one of the most important performance indicators for spring-loaded contacts.

Repeated compression and release place mechanical stress on internal components. High-quality spring materials and precise manufacturing help ensure that contact force remains consistent throughout the product’s life.

Wear resistance of the plunger tip is also critical. Poorly designed contacts may experience rapid wear, leading to increased resistance or mechanical failure.

Durability testing, including life cycle testing under controlled conditions, helps verify that spring-loaded contacts meet the required performance standards for long-term use.

Alignment Tolerance and Contact Reliability

One of the key advantages of spring-loaded contacts is their ability to accommodate misalignment.

In practical applications, perfect alignment between mating surfaces is difficult to achieve. Spring-loaded contacts can absorb positional tolerances and maintain stable contact even when alignment is not ideal.

This characteristic makes them particularly suitable for modular designs, where components may be replaced or repositioned during use. It also reduces the need for highly precise mechanical fixtures, simplifying overall system design.

Proper spacing and layout of spring-loaded contacts are important to ensure uniform contact force distribution and reliable performance across multiple contact points.

Manufacturing Quality and Inspection Processes

Consistent manufacturing quality is essential for reliable spring-loaded contacts.

Precision machining and assembly processes are required to maintain tight tolerances in the internal components. Even small dimensional variations can affect contact force, travel distance, and electrical performance.

Quality inspection typically includes dimensional checks, contact force measurement, and electrical resistance testing. Visual inspection helps identify surface defects or plating issues that could affect performance.

Process control and consistency are particularly important for large-scale production, where variations between batches can impact overall system reliability.

Application Considerations in Charging Systems

In charging applications, spring-loaded contacts must handle relatively high current levels while maintaining stable electrical contact.

Thermal performance becomes an important consideration, as heat generated by current flow can affect material properties and long-term reliability. Proper contact design and material selection help manage thermal stress.

Charging environments may also expose contacts to dust, moisture, or contamination. Design measures such as protective housings or self-cleaning contact surfaces can help improve reliability.

Application Considerations in Testing Systems

In testing applications, spring-loaded contacts are often used for signal transmission rather than power delivery.

Accuracy and repeatability are critical. Variations in contact resistance or mechanical engagement can affect test results and lead to inconsistent measurements.

Test fixtures may also require high-density contact layouts. Proper spacing and alignment design help ensure reliable performance without interference between adjacent contacts.

Ease of replacement is another consideration, as test probes may need to be replaced periodically due to wear.

Custom Spring-Loaded Contact Solutions

Standard spring-loaded contacts meet the needs of many applications, but custom solutions are often required for specialized designs.

Customization options may include specific contact force, travel distance, tip geometry, mounting style, or current rating. Custom spring-loaded contacts can help optimize performance for unique charging or testing requirements.

Early collaboration with a spring-loaded contact manufacturer during the design phase allows potential issues to be identified and resolved before production, reducing development risk and improving overall system performance.

Conclusion

Spring-loaded contacts play a critical role in modern charging and testing applications by providing reliable electrical connections under challenging conditions. Their unique mechanical structure allows them to compensate for misalignment, vibration, and repeated use while maintaining stable electrical performance.

By carefully considering mechanical design, electrical performance, durability, manufacturing quality, and application requirements, engineers can select spring-loaded contact solutions that deliver long-term reliability.

Choosing a reliable spring-loaded contact manufacturer with engineering support and customization capabilities helps ensure successful implementation in both charging and testing systems.
