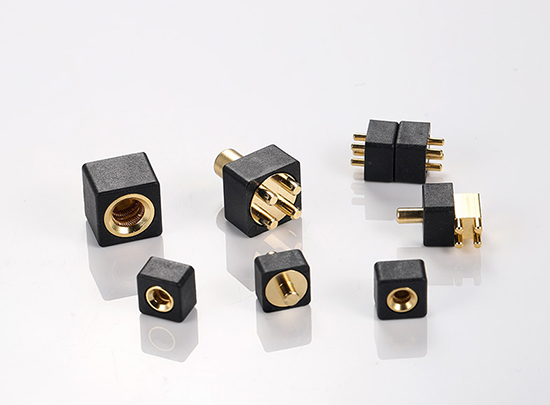

Mechanical Alignment Challenges in Board-to-Board Connector Design

Industry Background and Market Demand

Board-to-board (BTB) connectors are critical components in modern electronics, enabling signal and power transmission between printed circuit boards (PCBs). As devices shrink and functionality increases, the demand for high-density, high-reliability connectors has surged. Industries such as automotive, telecommunications, and consumer electronics require connectors that maintain precise alignment under mechanical stress, thermal cycling, and vibration.

The shift toward miniaturization and modular designs has intensified the need for connectors with tighter tolerances. According to market research, the global BTB connector market is projected to grow at a CAGR of 6.5% through 2030, driven by advancements in 5G, IoT, and electric vehicles. However, mechanical misalignment remains a persistent challenge, leading to signal integrity issues, increased resistance, and premature wear.

Core Concepts: Mechanical Alignment in BTB Connectors

Mechanical alignment refers to the precise positioning of mating connectors to ensure proper electrical contact. Misalignment can occur in three primary forms:

- Lateral offset: Horizontal displacement between mating contacts.

- Angular deviation: Tilt or rotation between connectors.

- Axial gap: Vertical separation due to uneven PCB mounting.

Even minor misalignment (as little as 50 µm) can degrade performance. High-speed applications, such as PCIe or DDR interfaces, are particularly sensitive to impedance mismatches caused by poor alignment.

Design Considerations: Structure, Materials, and Manufacturing

Product Structure

Modern BTB connectors use a combination of rigid and compliant structures to mitigate misalignment:

- Guiding features: Tapered housings, alignment pins, and keying slots ensure correct mating orientation.

- Floating contacts: Spring-loaded or cantilevered contacts compensate for minor offsets.

- Low-insertion-force (LIF) designs: Reduce mechanical stress during mating cycles.

Material Selection

- Housings: High-temperature LCP (liquid crystal polymer) or PPS (polyphenylene sulfide) for dimensional stability.

- Contacts: Beryllium copper or phosphor bronze for elasticity and conductivity.

- Plating: Gold-over-nickel for corrosion resistance and low contact resistance.

Manufacturing Precision

Tolerances below ±25 µm are common in high-end connectors. Injection molding, stamping, and plating processes must adhere to strict quality controls to prevent warpage or burrs. Automated optical inspection (AOI) is often employed to verify alignment-critical features.

Key Factors Affecting Performance

1. Thermal Expansion: Mismatched coefficients of thermal expansion (CTE) between PCBs and connectors can induce stress.

2. Vibration and Shock: Automotive and aerospace applications require connectors with robust retention mechanisms.

3. Mating Cycles: Durability testing (e.g., 10,000+ cycles) ensures long-term reliability.

4. PCB Fabrication Variability: Warped or uneven PCBs exacerbate alignment challenges.

Supplier Selection Criteria

When sourcing BTB connectors, engineers evaluate suppliers based on:

- Tolerance control: Demonstrated capability to meet tight specifications.

- Testing protocols: Compliance with IEC 60512 and other industry standards.

- Design support: Availability of simulation tools (e.g., FEA for stress analysis).

- Supply chain resilience: Lead times and secondary sourcing options.

Common Industry Pain Points

1. Trade-offs Between Density and Alignment: Higher pin counts reduce tolerances for misalignment.

2. Cost vs. Performance: Premium materials (e.g., gold plating) increase costs but are essential for reliability.

3. Legacy System Integration: Retrofitting new connectors into existing designs often requires custom solutions.

Application Examples

- Automotive ADAS: Camera modules rely on BTB connectors with vibration-resistant designs.

- Server Backplanes: High-speed data transmission demands connectors with <100 µm lateral tolerance.

- Medical Devices: Hermetic connectors ensure alignment in sterilizable environments.

Current Trends and Future Directions

1. Active Alignment Systems: Micro-actuators or self-aligning mechanisms for real-time correction.

2. Hybrid Connectors: Combining power, signal, and optical channels in a single housing.

3. Additive Manufacturing: 3D-printed connectors with embedded alignment features.

FAQ

Q: How does connector pitch affect alignment tolerance?

A: Smaller pitches (e.g., 0.4 mm) require tighter tolerances, as misalignment risks short circuits or open contacts.

Q: Can conformal coatings impact alignment?

A: Yes, uneven coating thickness may interfere with mating. Selective coating or precision dispensing is recommended.

Q: What are the trade-offs of using floating contacts?

A: While they improve misalignment compensation, floating designs may reduce overall connector rigidity.

Conclusion

Mechanical alignment in BTB connectors is a multifaceted challenge requiring careful consideration of design, materials, and manufacturing processes. As industries push for higher performance in smaller form factors, innovations in alignment technology will remain critical. Engineers must balance cost, density, and reliability to meet evolving market demands.
