Signal Stability and Jitter Challenges of Spring-Loaded Contacts in High-Speed Data Testing

2025-12-30 10:55:25

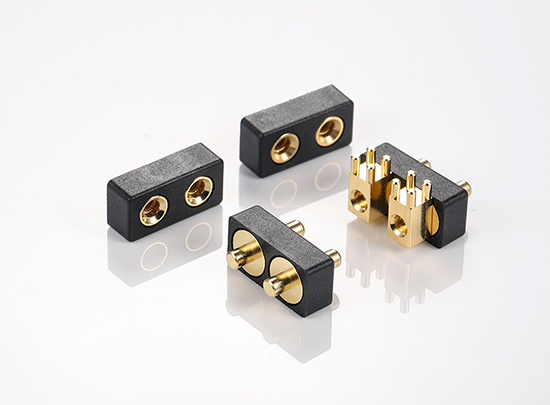

High-speed data interfaces are now common across electronics testing environments. From semiconductor validation and PCB functional testing to high-speed communication modules and consumer electronics verification, test systems increasingly operate at data rates where signal integrity margins are extremely tight. In many of these test fixtures, spring-loaded contacts, commonly known as pogo pins, are used to provide temporary electrical connections.

While spring-loaded contacts offer flexibility and fast replacement, they also introduce unique challenges in high-speed data testing. Contact dynamics, mechanical movement, and impedance variation can affect signal stability and introduce jitter that compromises measurement accuracy. This article explores signal stability and jitter challenges of spring-loaded contacts in high-speed data testing, helping engineers understand failure mechanisms and design strategies for reliable test performance.

Why High-Speed Data Testing Is Sensitive to Contact Behavior

At high data rates, digital signals transition rapidly between logic states. Small variations in impedance, timing, or noise can significantly affect eye diagrams and bit error rates.

In permanent interconnections, signal paths are carefully controlled through PCB trace geometry and connector design. In contrast, spring-loaded contacts create a temporary interface whose electrical characteristics can vary with mechanical conditions.

Because pogo pins rely on spring force and mechanical compression, their electrical behavior is inherently dynamic. This dynamic nature becomes a critical factor when testing high-speed data signals.

Contact Movement and Its Impact on Signal Stability

One of the defining features of spring-loaded contacts is axial movement.

During operation, vibration, mechanical shock, or even thermal expansion can cause micro-movements at the contact interface. These movements may be negligible in low-speed or DC applications but can introduce measurable effects in high-speed data testing.

Micro-movements can cause slight changes in contact resistance and inductance, leading to time-varying impedance. This impedance variation manifests as signal jitter or noise in high-speed measurements.

In test environments where repeatability is essential, such variability can lead to inconsistent results between test cycles.

Impedance Discontinuities at the Contact Interface

Impedance continuity is critical for high-speed signal integrity.

Spring-loaded contacts are not typically designed with controlled impedance in the same way as high-speed connectors or PCB traces. The transition from PCB pad to pogo pin to test fixture trace introduces impedance discontinuities.

These discontinuities can cause signal reflections that distort waveform edges and increase jitter. At higher data rates, even small discontinuities can significantly degrade signal quality.

Understanding how spring-loaded contacts affect impedance is essential when using them in high-speed test applications.

Contact Force Variation and Electrical Noise

Contact force plays a key role in the electrical behavior of spring-loaded contacts.

Insufficient contact force may result in unstable electrical contact, leading to intermittent resistance changes. Excessive force, on the other hand, may cause accelerated wear or deformation that affects long-term performance.

In high-speed data testing, variations in contact force across multiple pins can create inconsistent electrical paths. These inconsistencies contribute to timing skew and noise across parallel signal channels.

Maintaining consistent contact force is therefore critical for achieving stable test results.

Crosstalk and Channel Interaction in Dense Test Fixtures

High-speed test fixtures often require high pin density.

When multiple spring-loaded contacts are placed close together, electromagnetic coupling between adjacent channels becomes more pronounced. Crosstalk can distort signal edges and increase jitter, especially when signals switch simultaneously.

The mechanical layout of pogo pins, combined with their electrical properties, influences how signals interact within the fixture. Without careful design, dense contact arrangements can compromise signal isolation.

Managing spacing and grounding in high-density test fixtures is essential for minimizing crosstalk effects.

Wear and Surface Condition Effects on High-Speed Signals

Repeated use of spring-loaded contacts leads to gradual wear of contact surfaces.

As plating wears or surface roughness increases, contact resistance may fluctuate more significantly during compression. These fluctuations can introduce noise and timing variation in high-speed signals.

Contamination such as debris or oxidation further exacerbates these effects. In high-speed testing, even minor surface changes can affect measurement repeatability.

Monitoring wear and maintaining clean contact surfaces are important aspects of reliable high-speed testing.

Mechanical Resonance and Vibration Sensitivity

In some test environments, mechanical vibration cannot be completely eliminated.

Spring-loaded contacts can exhibit mechanical resonance under certain vibration frequencies. This resonance may cause periodic contact movement that modulates electrical characteristics.

Such modulation can appear as deterministic jitter in measured signals, making it difficult to distinguish between device-under-test behavior and fixture-induced artifacts.

Designing fixtures that minimize vibration transfer to pogo pins helps improve measurement stability.

Design Strategies to Improve Signal Stability

Several design strategies can improve the performance of spring-loaded contacts in high-speed data testing.

Selecting pogo pins specifically designed for high-frequency applications helps reduce impedance variation. Optimized plunger geometry and internal structure can improve electrical consistency.

Reducing the effective signal path length through the contact helps minimize inductance. Shorter contacts generally perform better at higher frequencies.

Incorporating dedicated ground contacts adjacent to signal pins improves return path quality and reduces crosstalk. Proper ground referencing is essential for stable high-speed measurements.

Fixture Layout and Grounding Considerations

Test fixture design plays a major role in overall signal integrity.

Careful layout of signal and ground pogo pins helps control electromagnetic fields and reduce noise. Symmetrical arrangements improve channel-to-channel consistency.

Ensuring low-inductance grounding paths between the pogo pins and the fixture ground plane helps stabilize signal reference levels.

Fixture materials and mechanical rigidity also influence vibration behavior and contact stability.

Testing and Validation of High-Speed Test Contacts

Validation is essential when using spring-loaded contacts in high-speed testing.

Signal integrity measurements such as eye diagrams, jitter analysis, and bit error rate testing help evaluate the impact of pogo pins on performance.

Testing should be performed under realistic operating conditions, including vibration and temperature variation where applicable.

Comparing results across multiple insertion cycles helps identify degradation trends related to wear or contact force changes.

When Spring-Loaded Contacts Are Suitable for High-Speed Testing

Spring-loaded contacts can be suitable for high-speed testing when properly selected and integrated.

They are often used successfully in prototype validation, production testing, and situations where temporary access is required. However, their limitations must be understood and managed.

In applications with extremely tight signal margins, alternative connection methods may be required. In many cases, a hybrid approach combining spring-loaded contacts with controlled impedance structures provides an effective solution.
